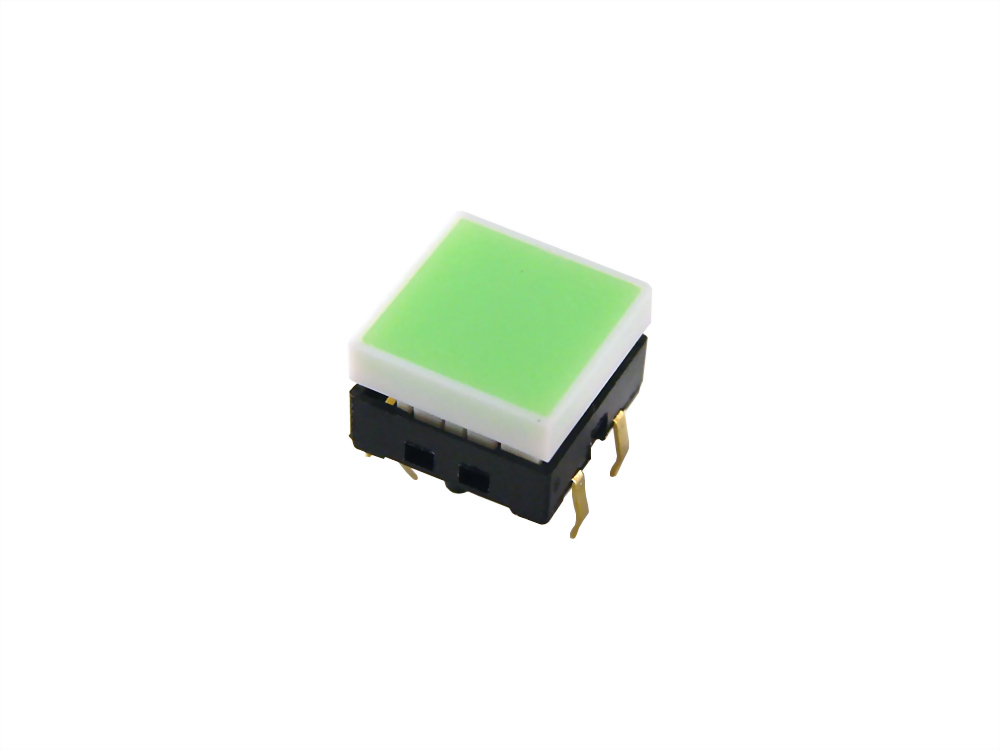

TACT SWITCH (TSPL-12-G)

SPECIFICATION:
Rating: 50mA 12V DC
SIZE: 12.0 x 12.0 mm
Green LED (30mA 5V)
Operating force: 250±50gf
Dielectric strength: AC 100 V 1 minute
Insulation resistance: 100 MΩ DC 100 V
Contact resistance: 100 MΩ Min.
Operating Temperature: -25oC ~ +60oC
Life Test: 100,000 Cycles
Approvals: RoHS
Model : TSPL-12-G
SPECIFICATION:

Rating: 50mA 12V DC

SIZE: 12.0 x 12.0 mm

Green LED (30mA 5V)

Operating force: 250±50gf

Dielectric strength: AC 100 V 1 minute

Insulation resistance: 100 MΩ DC 100 V

Contact resistance: 100 MΩ Min.

Operating Temperature: -25oC ~ +60oC

Life Test: 100,000 Cycles


Approvals: RoHS
