CIRCUIT BREAKER (SCB98 Series)

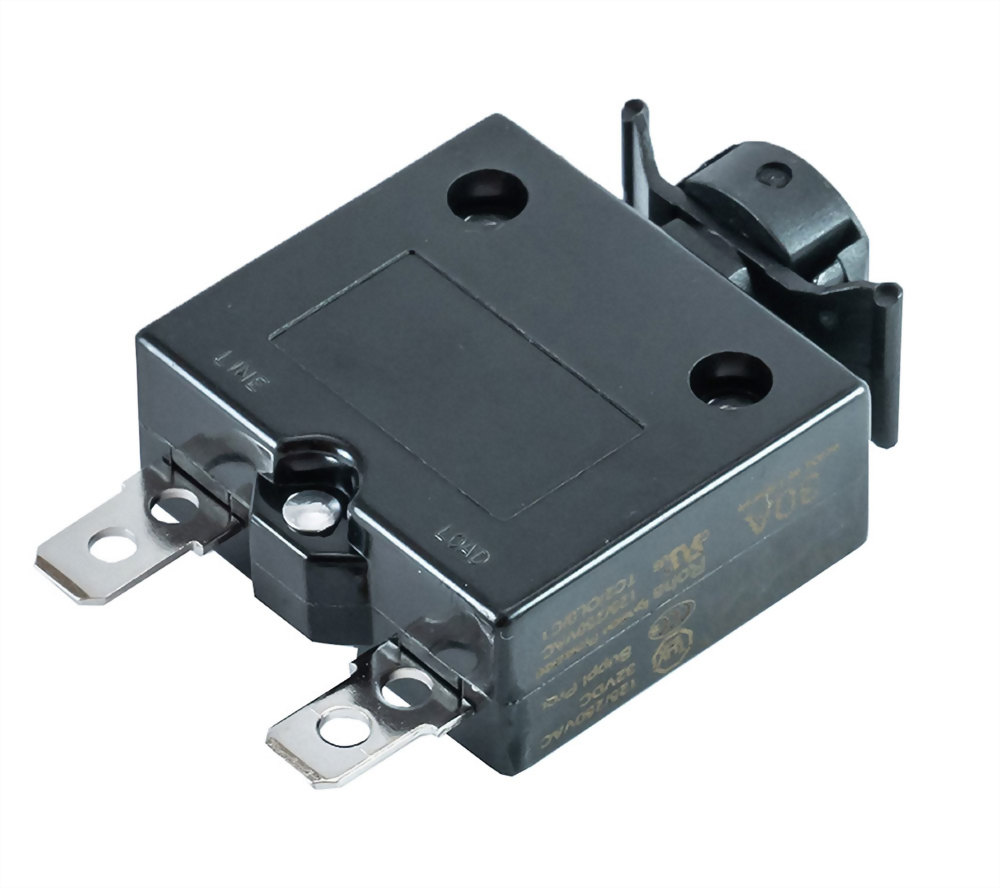

SCB98 Series Thermal Circuit Breaker
Single Pole Push to Reset
Model : SCB98 Series

SPECIFICATION:

Rating: 3A ~ 50A

Input Power: 125/250VAC 50VDC 50/60Hz

Interrupting Capacity:

125Vac X 1,000Amp

250Vac X 200Amp

Dielectric Strength: 1,500Vac 1 minute

Resettable Overload Capacity: 10 times rated current

Voltage Drop: Less than 0.25V

Insulation Resistance: >500M ohms

Reset Time: Within 60 seconds

Temperature Rise at Terminal Block:

Less than 65℃ at 100% of rated current

applied continuously at 25℃

Contact Endurance: 125Vac x 150% of rated current >-500 Cycles

Calibration ( at 25oC)

100% of rated current: Hold, No-Trip

150% of rated current: Trip in 1 Hour

200% of rated current: Within 40 seconds

300% of rated current: Within 10 seconds


Approvals: RoHS, UL, TUV, 3C
