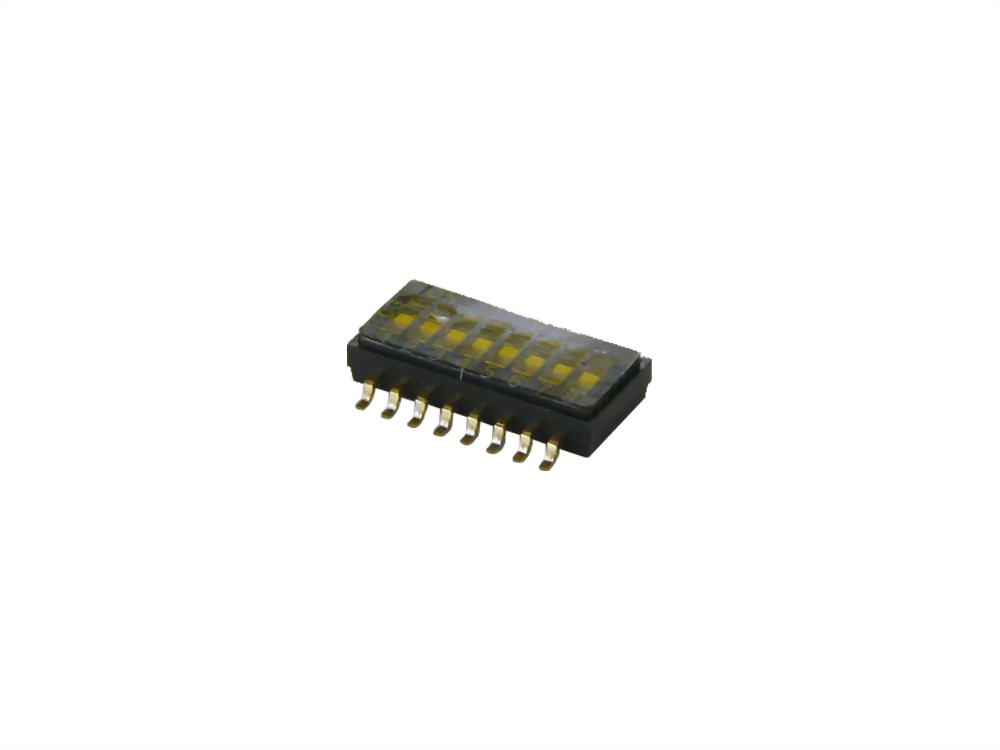

DIP SWITCH (SDHNF-□□-T)

SPECIFICATION:

Rating: 25mA 24V DC

Half Pitch Type

PIN Pitch: 1.27mm

Top Tape Sealed

Operation Force: 500gf max

Dielectric Strength: AC 300 V 1 Minute

Insulation Resistance: 100 MΩ Mim 500V DC

Contact Resistance: 100MΩ Max.

Operating Temperature: -40oC ~ +85oC

Mechanical Life: 1,000 Operations

Electrical Life: 1,000 Operations

FUNCTION:

2 , 4 , 6 , 8 , 10  positions

Approvals : RoHS
