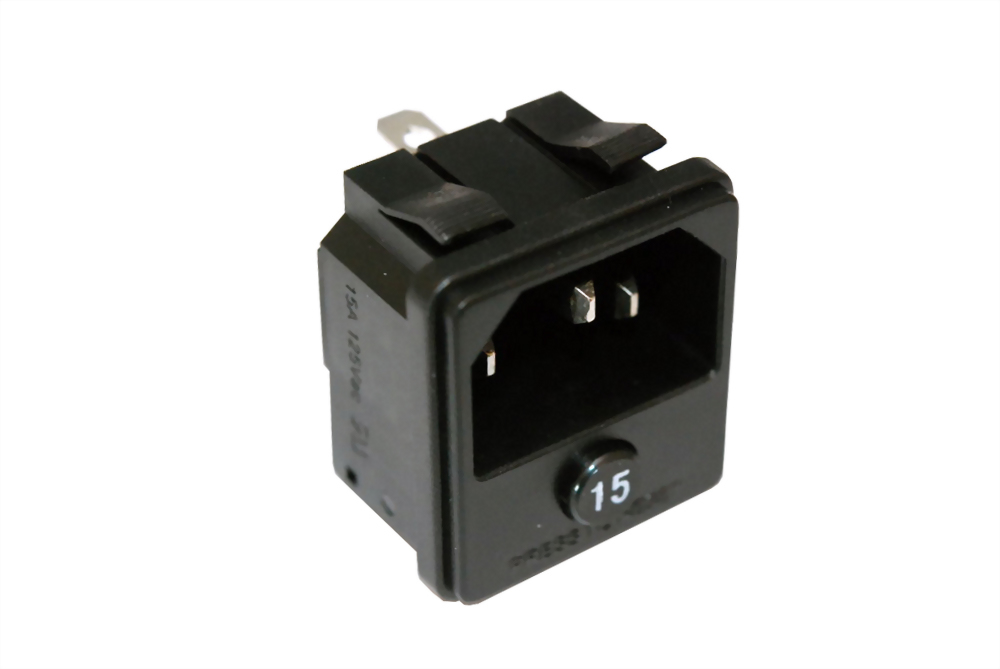

• CIRCUIT BREAKER (SCB88D-15A)

CIRCUIT BREAKER (SCB88D-15A)

SPECIFICATION:
Power Inlet: 15A 125V AC
Circuit Protector: 3A~15A
Minimum Insulation resistance:10M OHM at 500VDC
Dielectric strength: AC 1,500 V 1 minute
Interrupting Capacity : 1,000A 125 V AC
Overload Capacity: 6 times rated current
Endurance of Circuit Protection:
125Vac X 150% of rated current >500 Cycles
125Vac X 200% of rated current > 300 Cycles
Calibration ( at 25oC)
100% of rated current: Hold, No-Trip
101~149% of rated current: Maybe trip or not
135% of rated current: Trip in 1 Hour
200% of rated current: 5-30 seconds Trip
300% of rated current: 1.5-5.0 seconds Trip
Model : SCB88D-15A

SPECIFICATION:

Power Inlet: 15A 125V AC

Circuit Protector: 3A~15A

Minimum Insulation resistance:10M OHM at 500VDC

Dielectric strength: AC 1,500 V 1 minute

Interrupting Capacity : 1,000A 125 V AC

Overload Capacity: 6 times rated current

Endurance of Circuit Protection:

125Vac X 150% of rated current >500 Cycles

125Vac X 200% of rated current > 300 Cycles

Calibration ( at 25oC)

100% of rated current: Hold, No-Trip

101~149% of rated current: Maybe trip or not

135% of rated current: Trip in 1 Hour

200% of rated current: 5-30 seconds Trip

300% of rated current: 1.5-5.0 seconds Trip


Approvals: RoHS, UL
