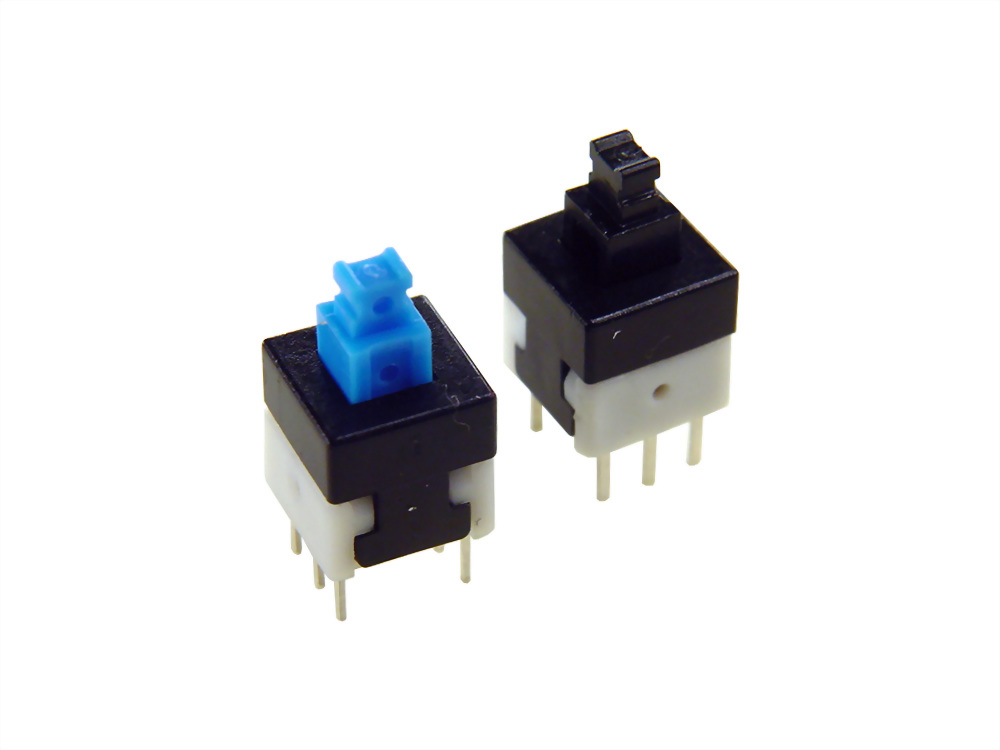

• PUSH SWITCH (SPS800N,L)

PUSH SWITCH (SPS800N,L)

SPECIFICATION:
Rating: 0.1A 30V DC
SIZE: 8.0 x 8.0 x 13.5mm
Operating Force: 160 ± 80g
Withatand Voltage: AC 125V 1 Minute
Insulation Resistance: 100 MΩ Mim. 125V DC
Contact Resistance: 100MΩ
Operating Temperature: -25oC ~ +65oC
Mechanical Life: 100,000 Cycles
Electrical Life: 10,000 Cycles
FUNCTION:
N = Non Lock Type
L = Lock Type
Approvals : RoHS
Model : SPS800N,L

SPECIFICATION:

Rating: 0.1A 30V DC

SIZE: 8.0 x 8.0 x 13.5mm

Operating Force: 160 ± 80g

Withatand Voltage: AC 125V 1 Minute

Insulation Resistance: 100 MΩ Mim. 125V DC

Contact Resistance: 100MΩ

Operating Temperature: -25oC ~ +65oC

Mechanical Life: 100,000 Cycles

Electrical Life: 10,000 Cycles

FUNCTION:

N = Non Lock Type

L = Lock Type


Approvals : RoHS
