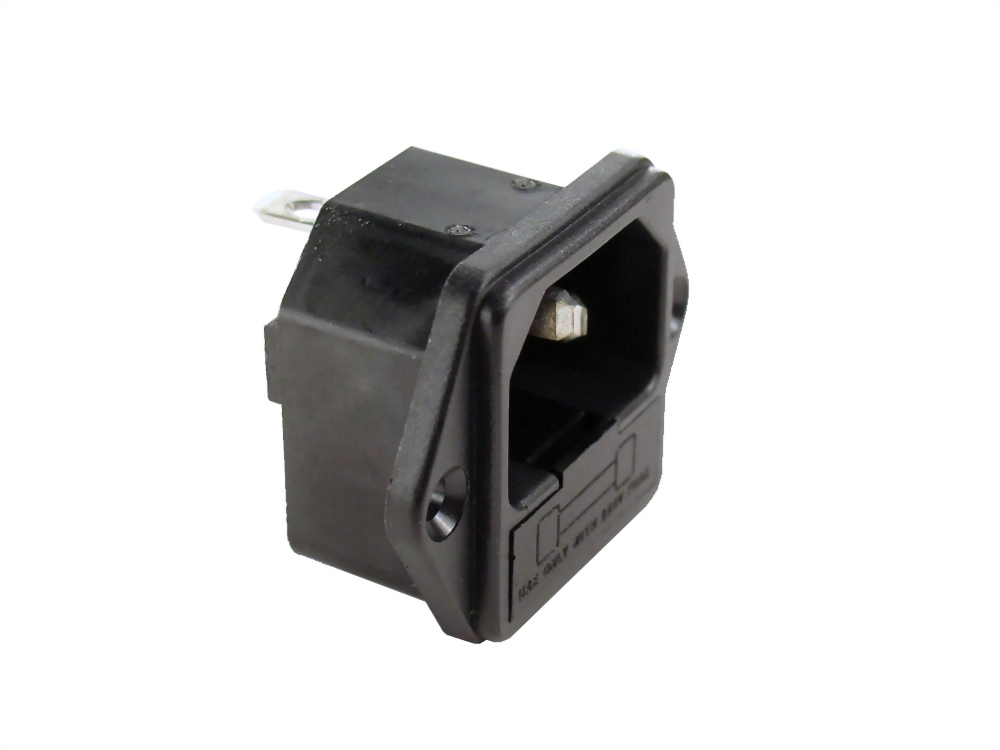

• AC SOCKET+FUSE HOLDER (SWRF-2004-C-□)

AC SOCKET+FUSE HOLDER (SWRF-2004-C-□)

SPECIFICATION:
Rating: 10A 250 V AC
Mounting Hole: 31.4 x 27.3 mm
Screw Hole: 36mm
Electrical Strength: AC 2,000 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 30MΩ Max.
Model : SWRF-2004-C-□

SPECIFICATION:

Rating: 10A 250 V AC

Mounting Hole: 31.4 x 27.3 mm

Screw Hole: 36mm

Electrical Strength: AC 2,000 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 30MΩ Max.


FUNCTION:

□ = Terminal

1  =  4.8 mm (#187)

2  =  2.8 mm (Solder)

3  =  6.3 mm (#250)


Approvals: RoHS, UL, CSA, VDE, SENKO, KTL, 3C
