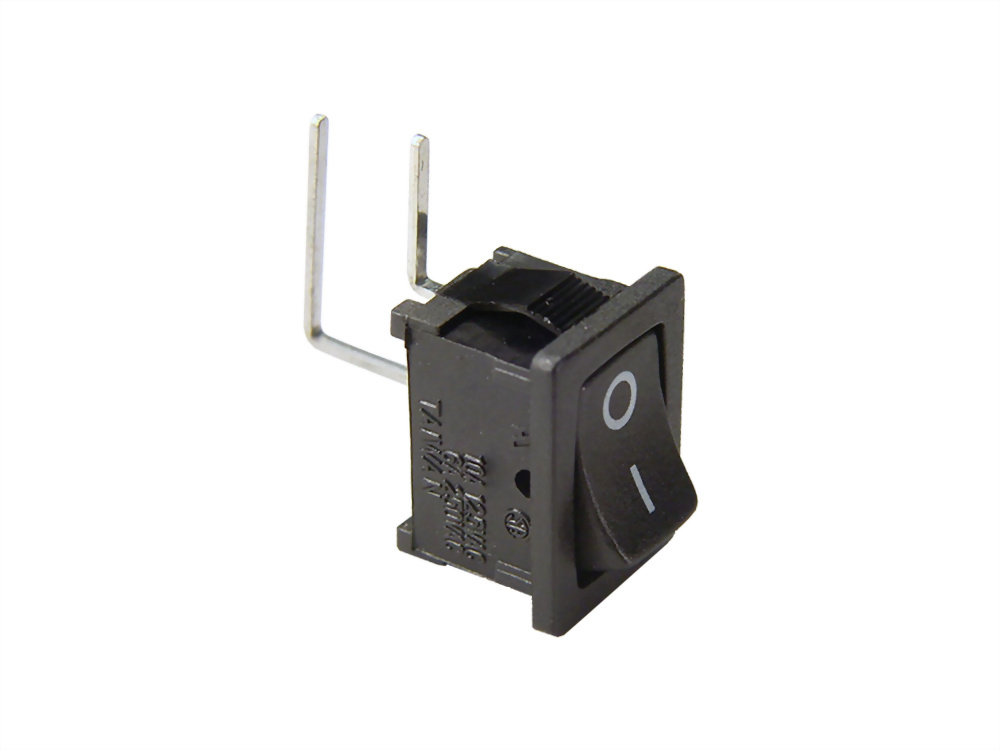

• ROCKER SWITCH (SRJS-606AG)

ROCKER SWITCH (SRJS-606AG)

SPECIFICATION:
Rating: 10A 125V / 6A 250V AC
Mounting Hole: 19 x 13 mm
Operation Force: 800 ± 300g
Function: ON - OFF Right Angle Tpye
Terminal Type: #187 Terminal (4.8mm)
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 20MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Electrical Life: 10,000 cycles
Operating Temperature: -25℃ ~ +85℃
Approvals : RoHS,UL,CSA,VDE,ENEC10
Model : SRJS-606AG

SPECIFICATION:

Rating: 10A 125V / 6A 250V AC

Mounting Hole: 19 x 13 mm

Operation Force: 800 ± 300g

Function: ON - OFF  Right Angle Tpye

Terminal Type: #187 Terminal (4.8mm)

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 20MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute

Electrical Life: 10,000 cycles

Operating Temperature: -25℃ ~ +85℃


Approvals : RoHS,UL,CSA,VDE,ENEC10
