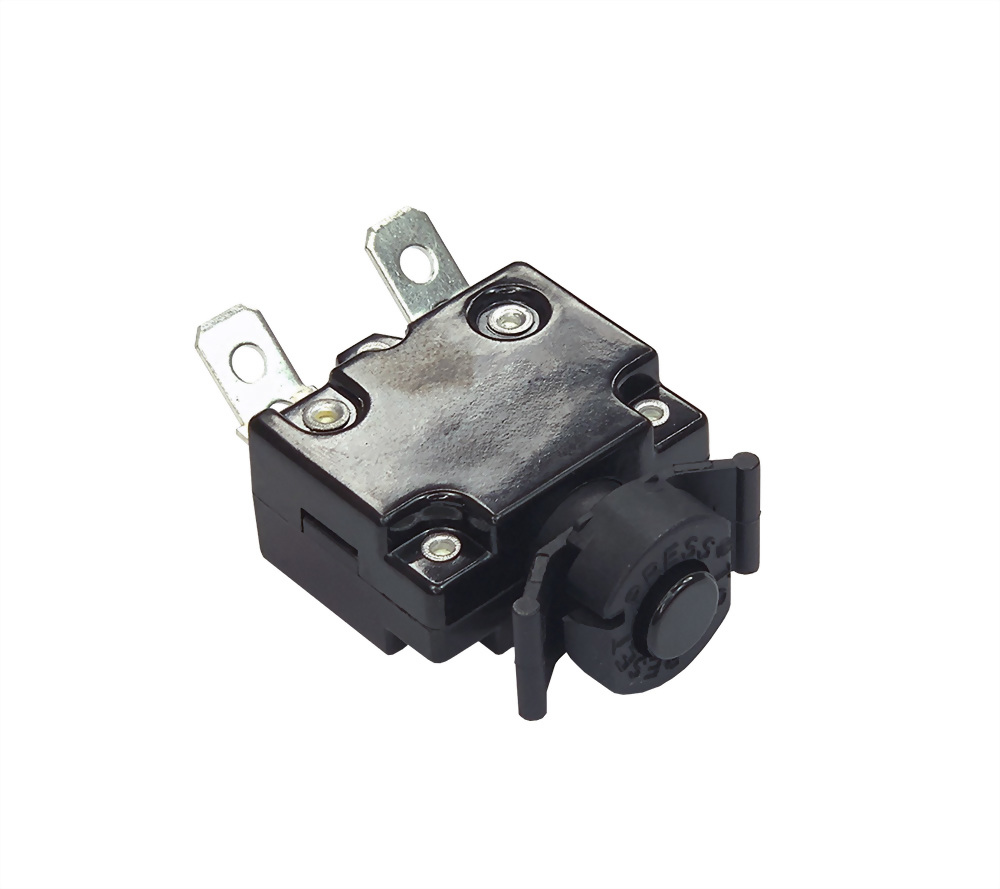

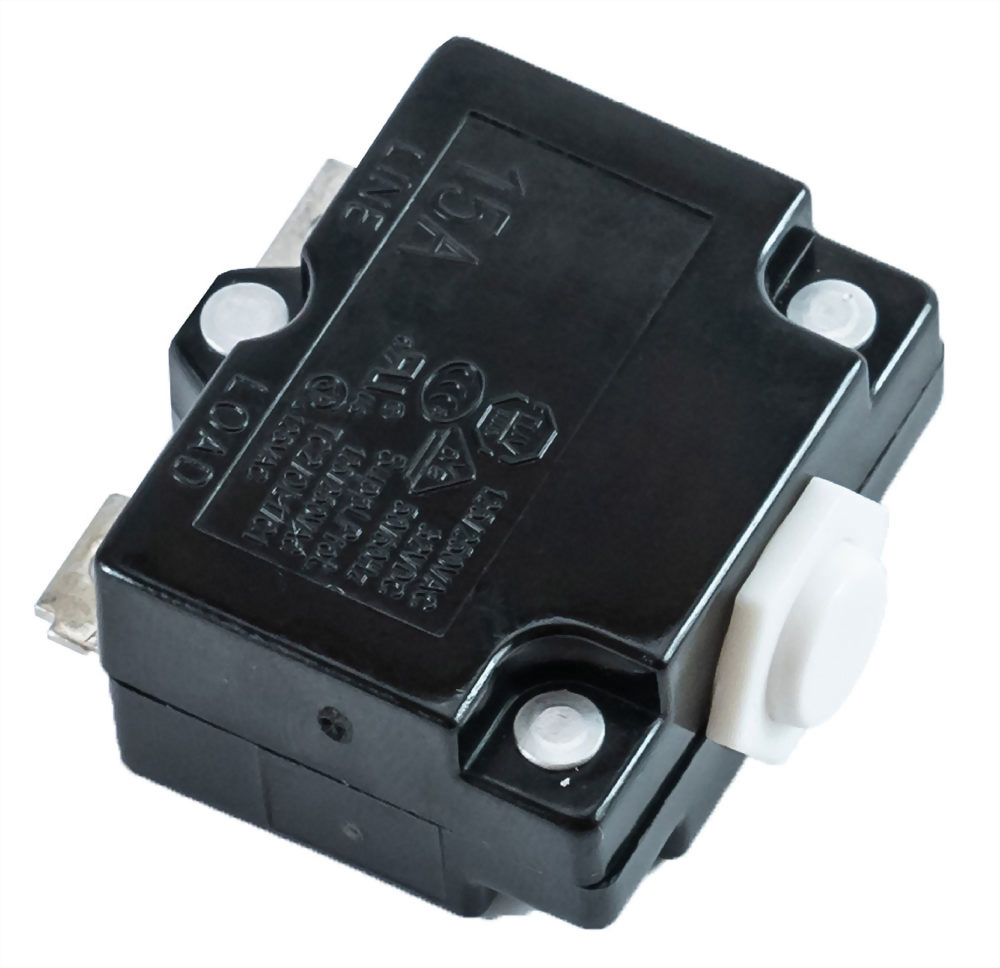

CIRCUIT BREAKER (SCB88 Series)

Rating: 3 ~ 25 A 125/250 V AC

Input Power: 125/250 VAC 50V dc 50-60Hz

Interrupting Capacity : 1,000Amp x 125 V ac 200Amp x 250V ac

Voltage Drop : Less than 0.25V

Dielectric strength: AC 1500 V 1 minute

Insulation resistance: >500 Mega ohms

Reset Time: Within 60 seconds

Temperature Rise at Terminal Block: Less than 65℃ at 100% of rated current applied continuously at 25℃

Contact Endurance: 125Vac X 150% of rated current >500 Cycles

Calibration ( at 25℃)

100% of rated current: Hold, No-Trip

150% of rated current: Trip in 1 Hour

200% of rated current: 5.2-30 seconds Trip

300% of rated current: 1.5-5.5 seconds Trip

Approvals: RoHS, UL, TUV, 3C
