  • SLIDE SWITCH (SLK-4203)

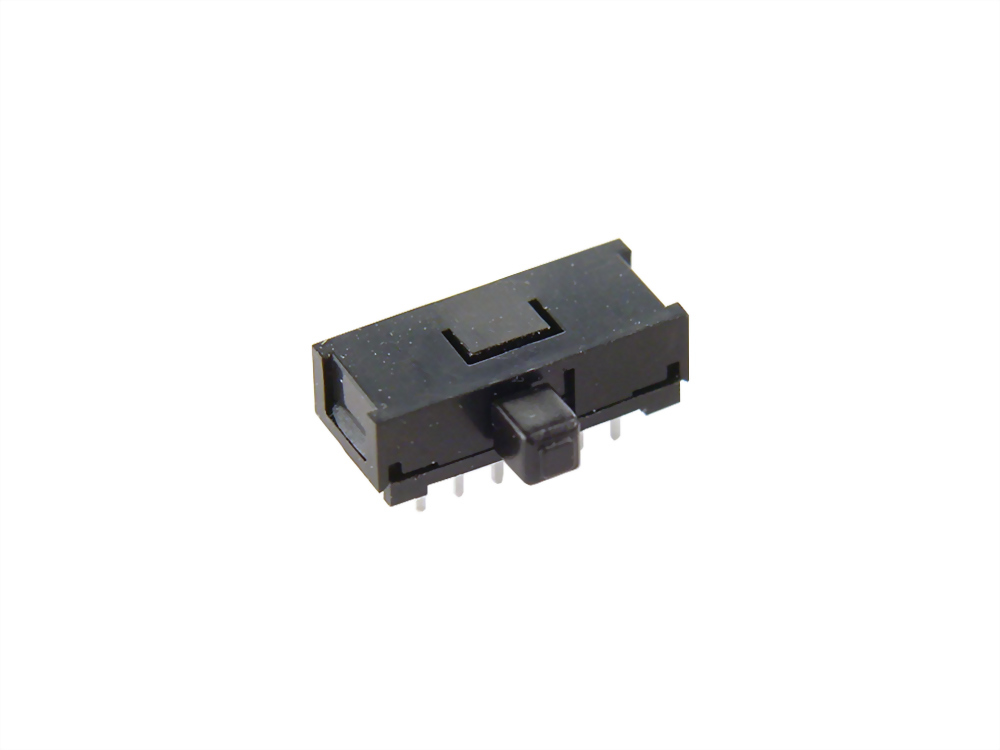

SLIDE SWITCH (SLK-4203)

SPECIFICATION:
Rating: 0.3A 30V DC
SIZE: 16.0(L) x 7.0(W) mm
4P2T , RG = 4.5 mm
Travel: 2 mm
Terminal Pitch: 2 mm
Dielectric Strength: AC 250 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ Max.
Operating Temperature: -25oC ~ +70oC
Life Test: 10,000 Cycles
Approvals : RoHS
Model : SLK-4203

SPECIFICATION:

Rating: 0.3A 30V DC

SIZE: 16.0(L) x 7.0(W) mm

4P2T , RG = 4.5 mm

Travel: 2 mm

Terminal Pitch: 2 mm

Dielectric Strength: AC 250 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 250V DC

Contact Resistance: 50MΩ Max.

Operating Temperature: -25oC ~ +70oC

Life Test: 10,000 Cycles



Approvals : RoHS
