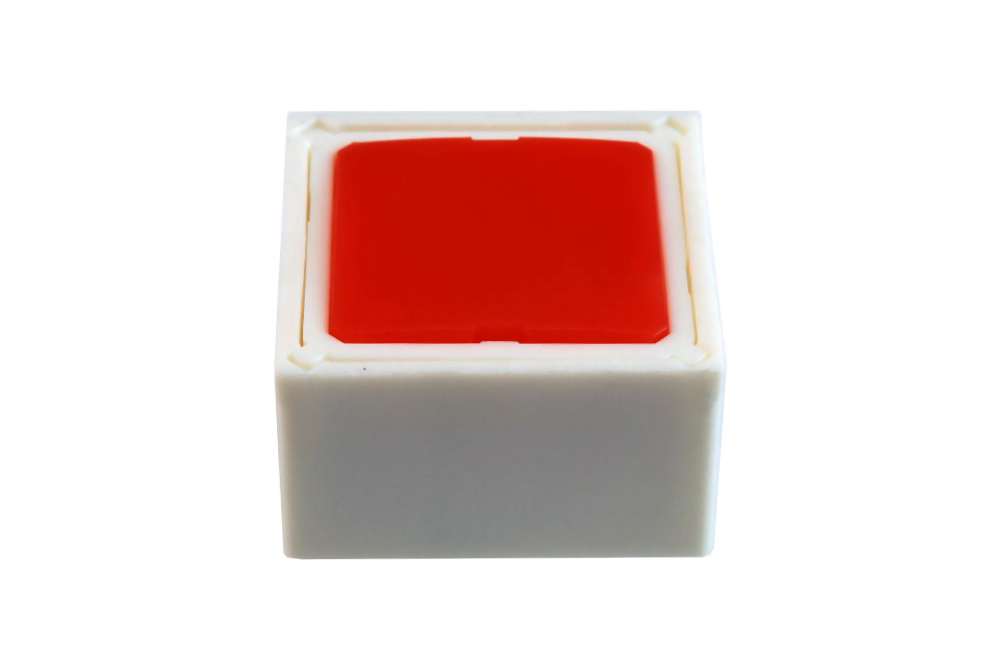

KEY SWITCH (SKS5B)

SPECIFICATION:
Rating: 100mA 42V AC/DC
SIZE: 15.0 x 15.0 x 9.7mm
Dielectric Strength: AC 1,000 V 1 Minute
Insulation Resistance: 1,000 MΩ Mim
Contact Resistance: 100mΩ Max.
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 1,000,000 Cycles
FUNCTION:
Cap Color:
1 = White 3 = Red
5 = Yellow 6 = Green
7 = Blue
LED Q"TY:
0 = No LED 1 = One LED
LED Color:
0 = Without LED 1 = White
3 = Red 5 = Yellow
6 = Green 7 = Blue
Approvals : RoHS
