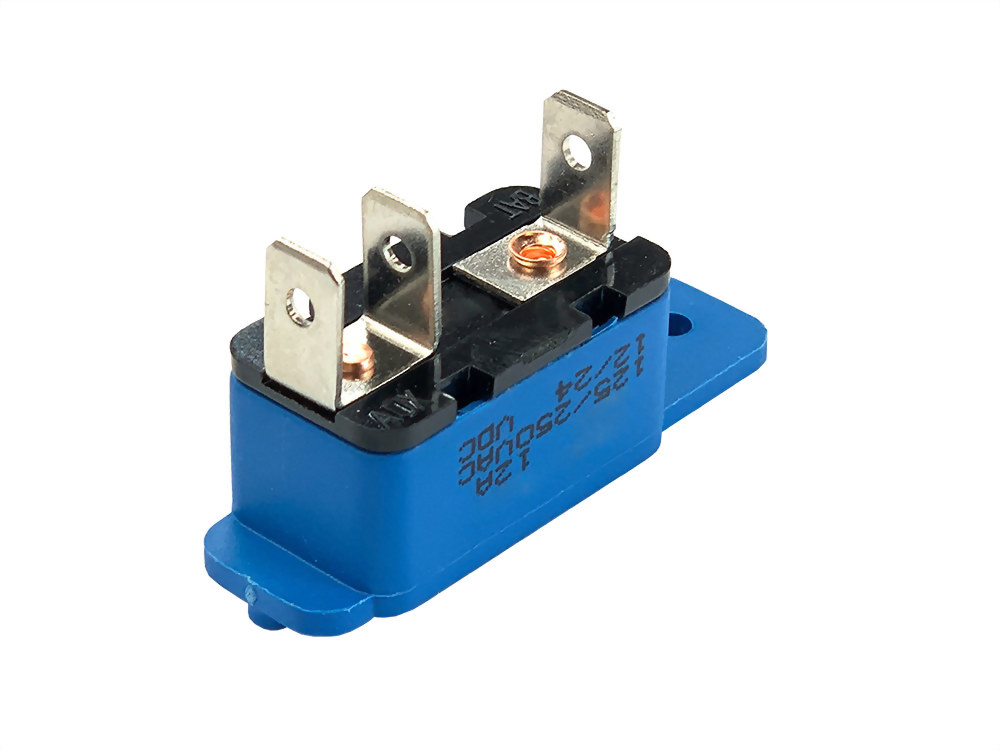

AUTOMATIC BREAKER (SWAR2 Series)

SEAR Series Shortstop Circuit Breaker
Single Pole Thermal Type Breakers
Model : SWAR2 Series

SPECIFICATION:

Rating: 3A ~ 25A

Input Power: 125/250 V ac 50Vdc 50/60Hz

Interrupting Capacity:

125V ac x 1000Amp

250V ac x 200Amp

Dielectric Strength: 1,500Vac 1 minute

Resettable Overload Capacity:  10 times rated current

Voltage Drop: Less than 0.25V

Insulation Resistance: >500M ohms

Reset Time: Within 60 seconds

Temperature Rise at Terminal Block:

Less than 65oC at 100% of rated Current applied continuously at 25 oC

Contact Endurance:

125Vac x 150% of rated current > 500 Cycles Calibration ( at 25 oC)

100% of rated current: Hold, No-Trip

150% of rated current: Trip in 1 Hour

200% of rated current: Trip within 40 seconds

300% of rated current: Trip within 10 seconds


Approvals: RoHS
