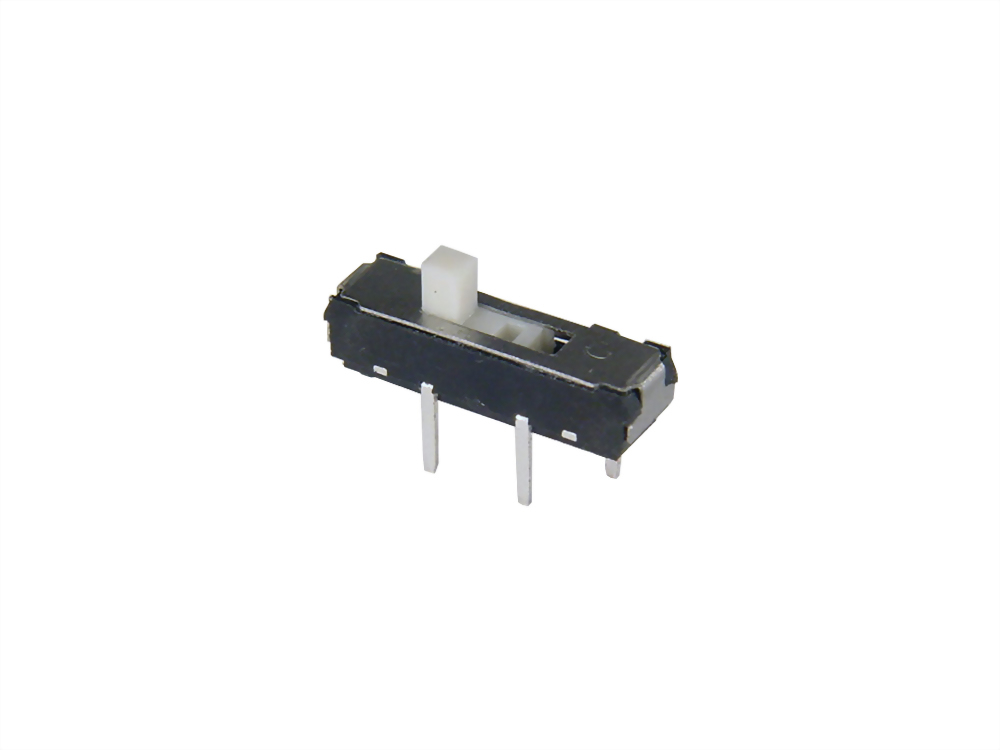

• SLIDE SWITCH (MSL-1336)

SLIDE SWITCH (MSL-1336)

MINI SLIDE SWITCH
SPECIFICATION:
Rating: 0.3A 6V DC
Circuit: 1P3T 4PIN
Travel: 2mm , Non Shorting
Operating Force: 200 ± 100g
Knob Length: 2.0mm
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 100MΩ
Operating Temperature: -20oC ~ +70oC
Electrical Life: 10,000 Cycles
Approvals : RoHS
Model : MSL-1336

SPECIFICATION:

Rating: 0.3A 6V DC

Circuit: 1P3T 4PIN

Travel: 2mm , Non Shorting

Operating Force: 200 ± 100g

Knob Length: 2.0mm

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 100MΩ

Operating Temperature: -20oC ~ +70oC

Electrical Life: 10,000 Cycles


Approvals : RoHS
