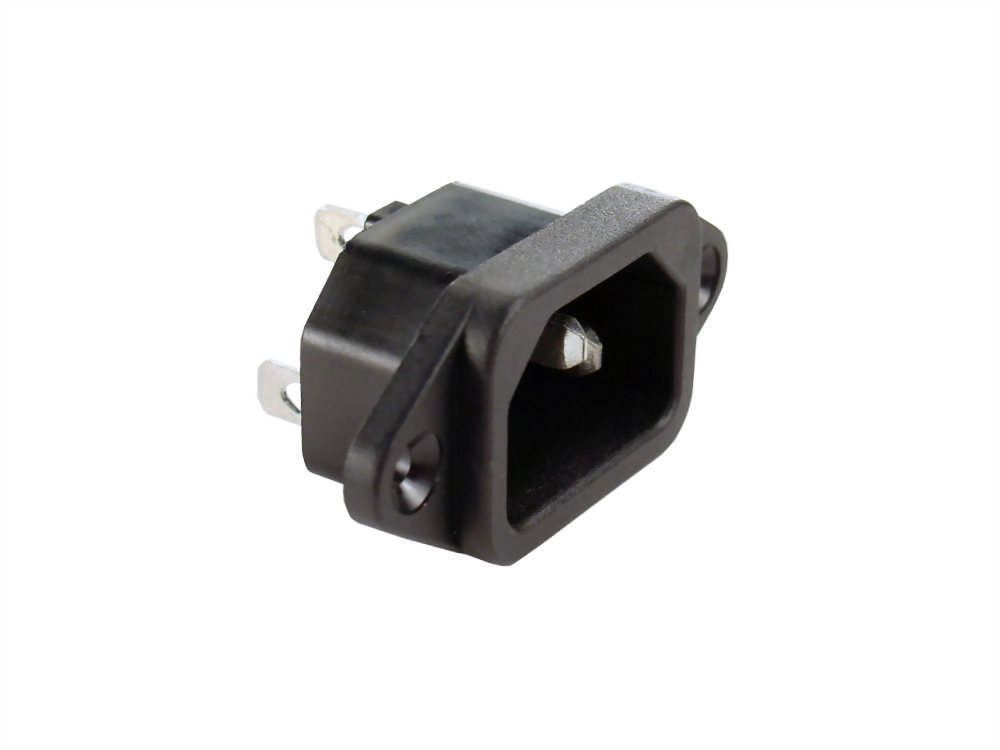

• IEC 60320 C14 SOCKET-INLETS-C14 (SWTU-301-A-A1-□)

IEC 60320 C14 SOCKET-INLETS-C14 (SWTU-301-A-A1-□)

SPECIFICATION:
Rating: 10/15A 250 V AC
Mounting Hole: 27.2 x 19.2 mm
Screw Hole: 40mm
Electrical Strength: AC 2,000 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 30MΩ Max.
Model : SWTU-301-A-A1-□

SPECIFICATION:

Rating: 10/15A 250 V AC

Mounting Hole: 27.2 x 19.2 mm

Screw Hole: 40mm

Electrical Strength: AC 2,000 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 30MΩ Max.


FUNCTION:

□ = Terminal

1   =  4.8 mm (#187)

2   =  4.0 mm (Solder)

3   =  6.3 mm (#250)


Approvals: RoHS, UL, CSA, VDE, DEMKO, NEMKO, SENKO, FIMKO, 3C
