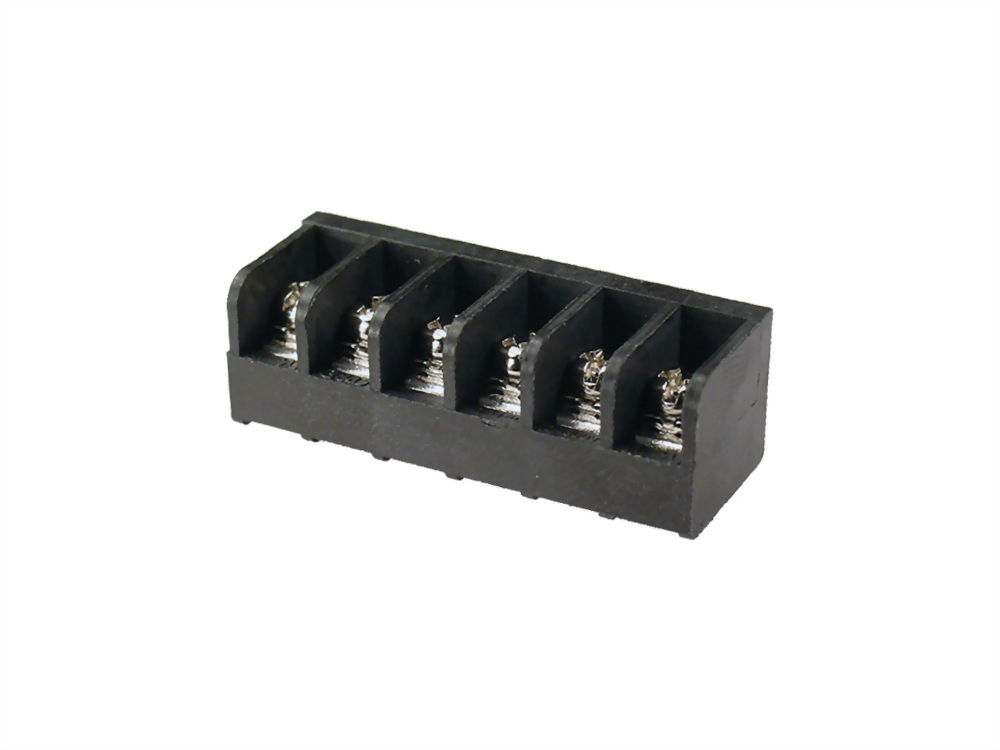

BARRIER TYPE TERMINAL BLOCK (STGGB-140-01)

SPECIFICATION:
Rating: 10A 300V AC
PIN Pitch: 6.35 mm
Working Temperature: -40℃ ~ +105 ℃
Withstand Voltage: AC 2,000V at 1 minute
Insulation Resistance: 500MΩ at DC 500V
Wire Range: 22 ~ 12 AWG
Max.Torque Value: 10kg-cm
FUNCTION:
2~32 poles
Approvals: RoHS, UL
Model : STGGB-140-01

SPECIFICATION:

Rating: 10A 300V AC

PIN Pitch: 6.35 mm

Working Temperature: -40℃ ~ +105 ℃

Withstand Voltage: AC 2,000V at 1 minute

Insulation Resistance: 500MΩ at DC 500V

Wire Range: 22 ~ 12 AWG

Max.Torque Value: 10kg-cm

FUNCTION:

2~32 poles


Approvals: RoHS, UL
