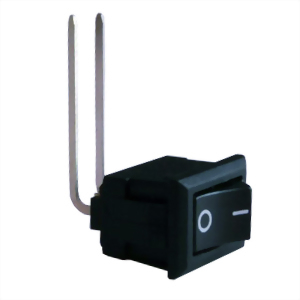

• ROCKER SWITCH (SMRA1KKFR0BL)

ROCKER SWITCH (SMRA1KKFR0BL)

SPECIFICATION:
Rating: 3A 125/250V AC
Mounting Hole: 9.0 x 13.8 mm
Function: ON - OFF Right Angle Type
Insulation Resistance: 1,000 MΩ Mim. 500V DC
Contact Resistance: 20MΩ Max.
Withatand Voltage: AC 1,500 V 1 Minute
Mechanical Life: 30,000 Cycles
Electrical Life: 10,000 Cycles
Approvals : RoHS,UL,ENEC10,VDE,CQC
Model : SMR1KKFR0BL

SPECIFICATION:

Rating: 3A 125/250V AC

Mounting Hole: 9.0 x 13.8 mm

Function: ON - OFF Right Angle Type

Insulation Resistance: 1,000 MΩ Mim. 500V DC

Contact Resistance: 20MΩ Max.

Withatand Voltage: AC 1,500 V 1 Minute

Mechanical Life: 30,000 Cycles

Electrical Life: 10,000 Cycles


Approvals : RoHS,UL,ENEC10,VDE,CQC
