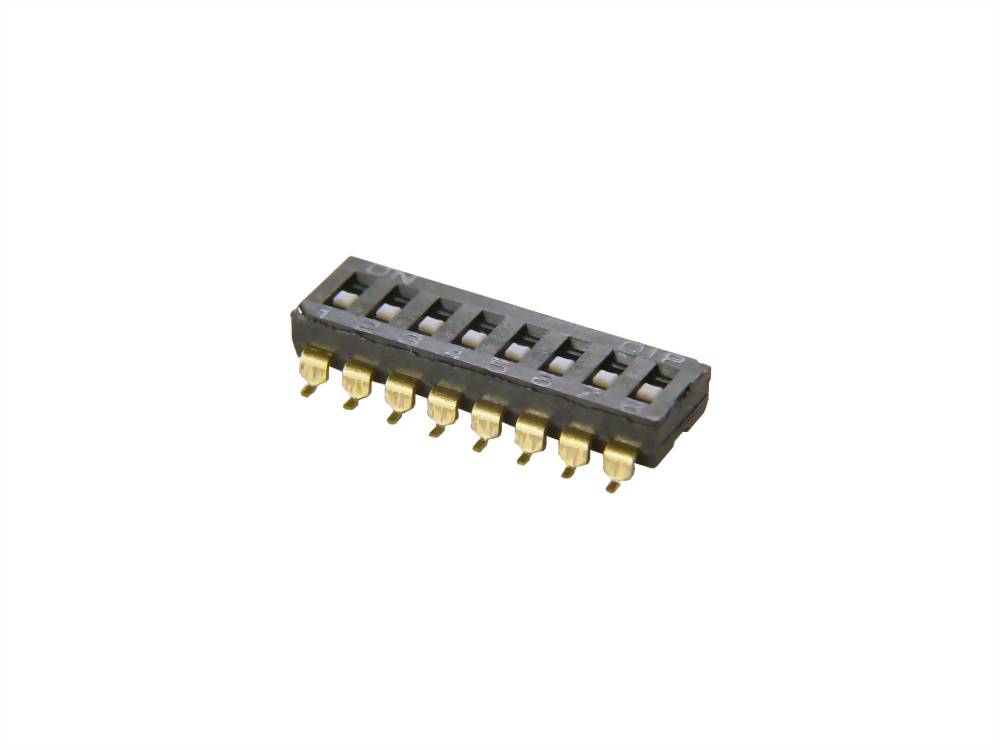

DIP SWITCH (SEMR）

SPECIFICATION:
Rating: 25mA 24V DC
S.M.T Type
PIN Pitch: 2.54mm
Recessed Actuator
Operation Force: 1,000gf max
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim 500V DC
Contact Resistance: 100MΩ Max.
Operating Temperature: -40oC ~ +85oC
Mechanical Life: 2,000 Operations
Electrical Life: 2,000 Operations
FUNCTION:
1 ~ 10 , 12 positions
Approvals : RoHS
Model : SEMR

SPECIFICATION:

Rating: 25mA 24V DC

S.M.T Type

PIN Pitch: 2.54mm

Recessed Actuator

Operation Force: 1,000gf max

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim 500V DC

Contact Resistance: 100MΩ Max.

Operating Temperature: -40oC ~ +85oC

Mechanical Life: 2,000 Operations

Electrical Life: 2,000 Operations

FUNCTION:

1 ~ 10 , 12  positions


Approvals : RoHS
