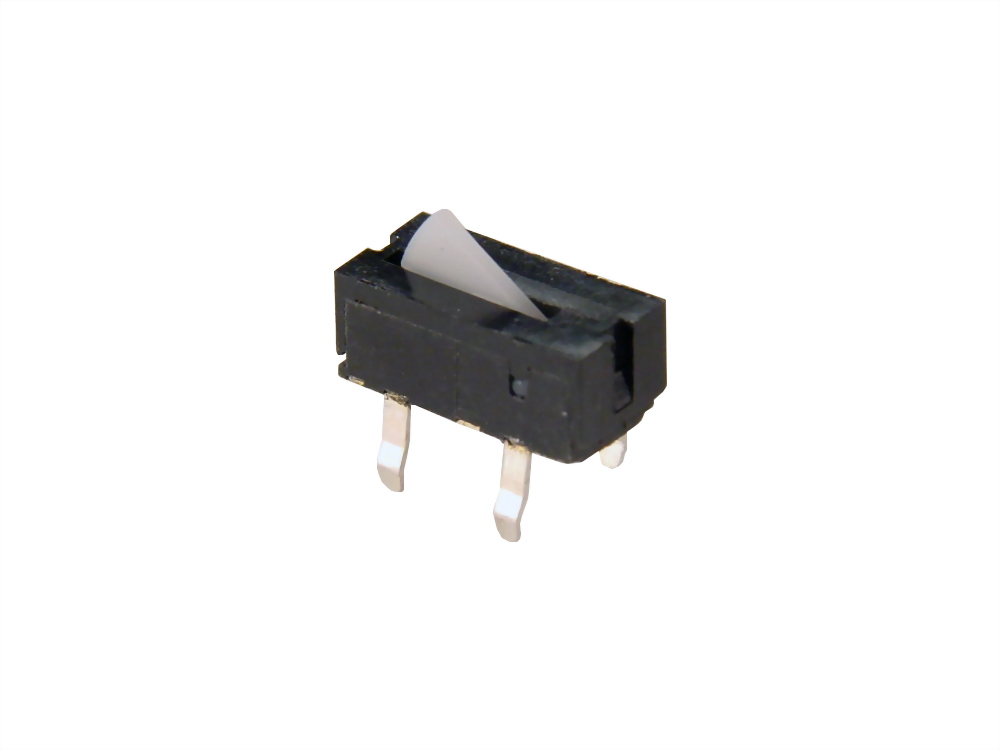

DETECTOR SWITCH（SRM021-01A）

Sensor Switch
SPECIFICATION:
Rating: 1mA 12V DC
Operating Force: 50gf
Electrical Strength: AC 100 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 100V DC
Contact Resistance: 100MΩ Max.
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 100,000 cycles
Electrical Life: 100,000 cycles
Approvals : RoHS
Model : SRM021-01A

Sensor Switch

SPECIFICATION:

Rating: 1mA 12V DC

Operating Force: 50gf

Electrical Strength: AC 100 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 100V DC

Contact Resistance: 100MΩ Max.

Operating Temperature: -25oC ~ +70oC

Mechanical Life: 100,000 cycles

Electrical Life: 100,000 cycles


Approvals : RoHS
