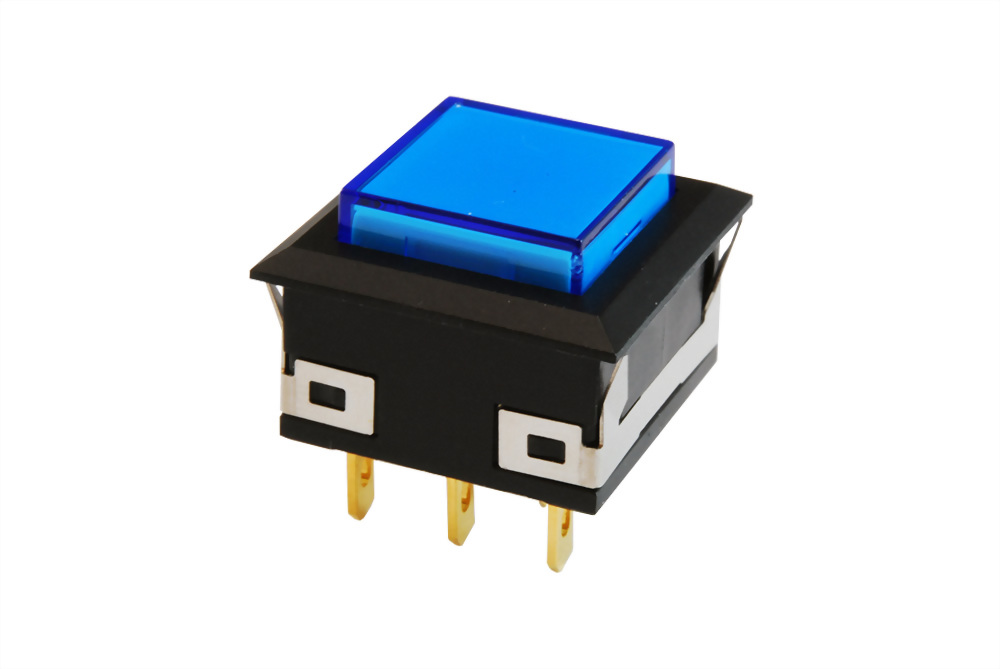

• PUSH SWITCH (SPC-AS-SS)

PUSH SWITCH (SPC-AS-SS)

SPECIFICATION:
Rating: 5A 125/250V AC
SIZE: 17.8x17.8mm
Operating Force: 190 ± 50gf
Insulation Resistance: 200 MΩ Mim. 500V DC
Contact Resistance: 50MΩ Max.
Operating Temperature: -25oC ~ +50oC
Mechanical Life: 1,000,000 cycles (Non-Lock)
200,000 cycles (Lock)
Electrical Life: 10,000 cycles
FUNCTION:
Lock / Non-Lock
Square / Rectangular Type
LED / without LED
Approvals : RoHS
Model : SPC-AS-SS

SPECIFICATION:

Rating: 5A 125/250V AC

SIZE: 17.8x17.8mm

Operating Force: 190 ± 50gf

Insulation Resistance: 200 MΩ Mim. 500V DC

Contact Resistance: 50MΩ Max.

Operating Temperature: -25oC ~ +50oC

Mechanical Life: 1,000,000 cycles (Non-Lock)

                         200,000 cycles (Lock)

Electrical Life: 10,000 cycles

FUNCTION:

Lock / Non-Loc

Square /  Rectangular Type

LED / without LED



Approvals : RoHS
