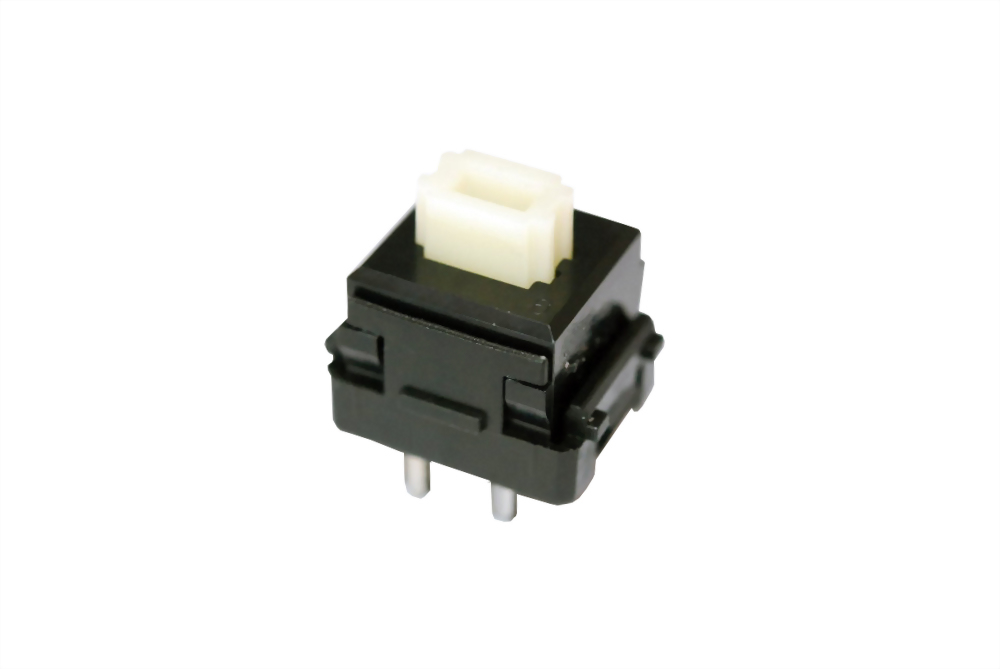

KEY SWITCH (SKSB-F-C)

SPECIFICATION:
Rating: 10mA 12V DC
SIZE: 16.8 x 14.0 x 15.5mm
PCB Terminal 5 PIN
Operation Force: 60±15gf
Dielectric Strength: AC 100 V 1 Minute
Insulation Resistance: 500 MΩ Mim
Contact Resistance: 1MΩ Max.
Operating Temperature: -25oC ~ +60oC
Operating Life: 10,000,000 Cycles Min
FUNCTION:
SKSB-F-N: Non Click Type
SKSB-F-CC: Click Type
Approvals : RoHS
Model : SKSB-F-C

SPECIFICATION:

Rating: 10mA 12V DC

SIZE: 16.8 x 14.0 x 15.5mm
PCB Terminal  5 PIN

Operation Force: 60±15gf

Dielectric Strength: AC 100 V 1 Minute
Insulation Resistance: 500 MΩ Mim
Contact Resistance: 1MΩ Max.

Operating Temperature: -25oC ~ +60oC

Operating Life: 10,000,000 Cycles Min

FUNCTION:

SKSB-F-N: Non Click Type

SKSB-F-CC: Click Type

Approvals : RoHS
