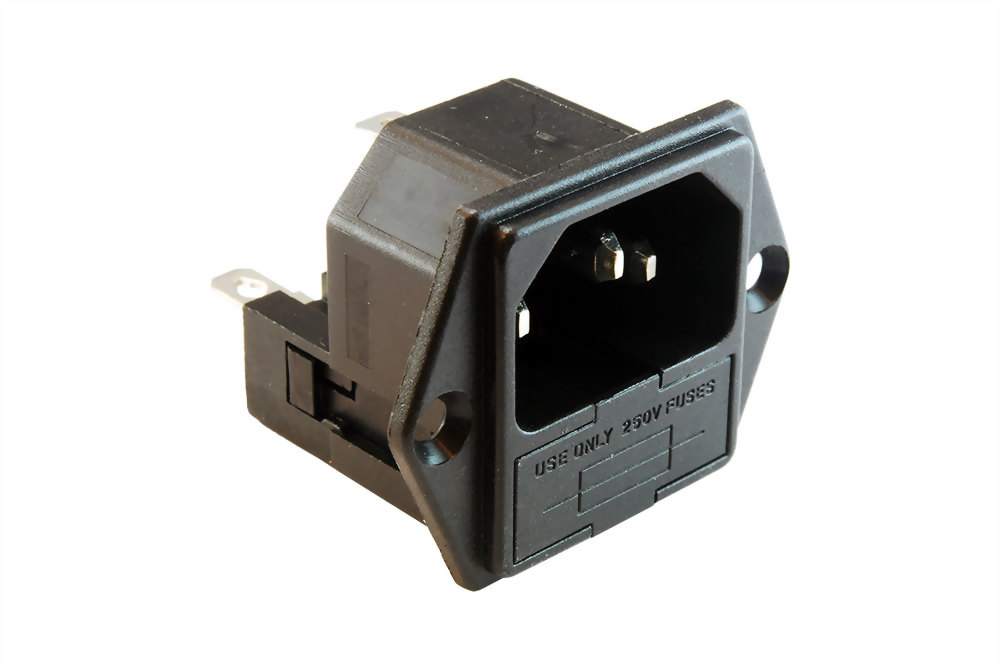

AC SOCKET+FUSE HOLDER (SWRF-2004D)

SPECIFICATION:
Rating: 10 A 250 V AC
Mounting Hole: 31.5 x 27.3 mm
Screw Hole: 36mm
With 2Fuse Holder
Withstand Voltage: AC 2000 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Operating Temperature: -10oC ~ +65oC
Model : SWRF-2004D

SPECIFICATION:

Rating: 10 A 250 V AC

Mounting Hole: 31.5 x 27.3 mm

Screw Hole: 36mm

With 2Fuse Holder

Withstand Voltage: AC 2000 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Operating Temperature: -10oC ~ +65oC


Approvals: RoHS, UL, TUV
