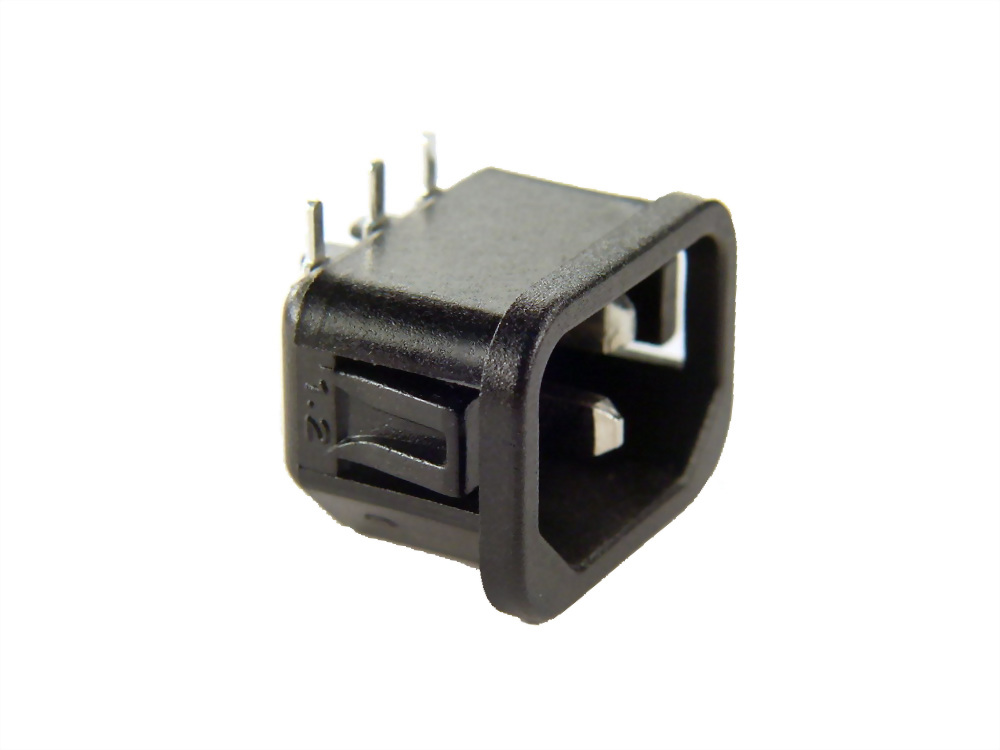

• IEC 60320 C14 SOCKET-INLETS-C14 (SWJR-101SE-PC□-1.2(3.0))

IEC 60320 C14 SOCKET-INLETS-C14 (SWJR-101SE-PC□-1.2(3.0))

SPECIFICATION:
Rating: 10 A 250 V AC
Mounting Hole: 27.7 x 20.0 mm
Withstand Voltage: AC 2000 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Operating Temperature: -25oC ~ +85oC
Model : SWJR-101SE-PC□-1.2(3.0)

SPECIFICATION:

Rating: 10 A 250 V AC

Mounting Hole: 27.7 x 20.0 mm

Withstand Voltage: AC 2000 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Operating Temperature: -25oC ~ +85oC


FUNCTION:

□ = Lead Length

A  =  2.4 mm

B  =  3.4 mm

C  =  5.2 mm

D  =  6.2 mm

E  =  9.8 mm


Approvals: RoHS, UL, CSA, VDE, DEMKO, NEMKO, SENKO, KEMA, FIMKO, SEV
