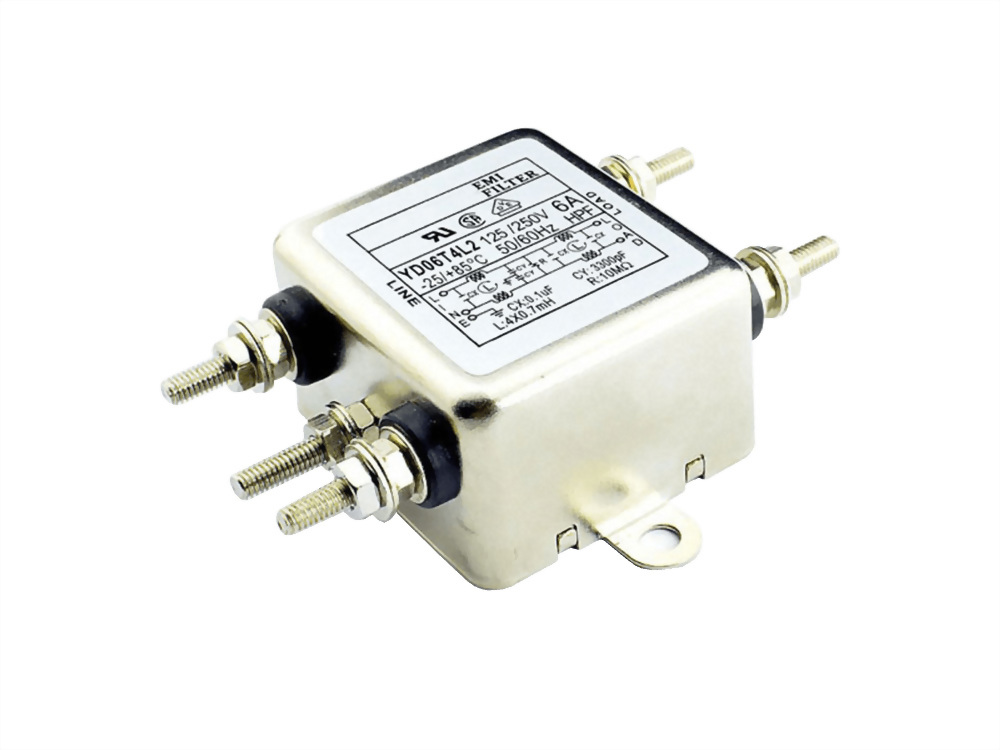

SINGLE PHASE EMI FILTERS (SEYD-T4L2)

Rating: 1A,3A,6A,10A 125/250V AC

Screw on 60 mm

Operating Frequency: 50/60Hz

Hipot Rating: Line to Line: 1450V DC

Line to Ground: 2250V DC

Leakage Current: 0.8mA Max

Insulation Resistance: 100MΩ Min 250V DC

Temperature Rise: 30 ℃ Max

Operating Temperature: -25 ℃ ~ +85 ℃

OUTPUT SELECTIONS:

YC-T1L2: #250 Terminal(6.3mm)

YD-T4L2:  M4 Screw Terminal

Approvals: RoHS

YC-T1: UL, CSA, CE

YD-T4: UL, CSA, VDE, CE
