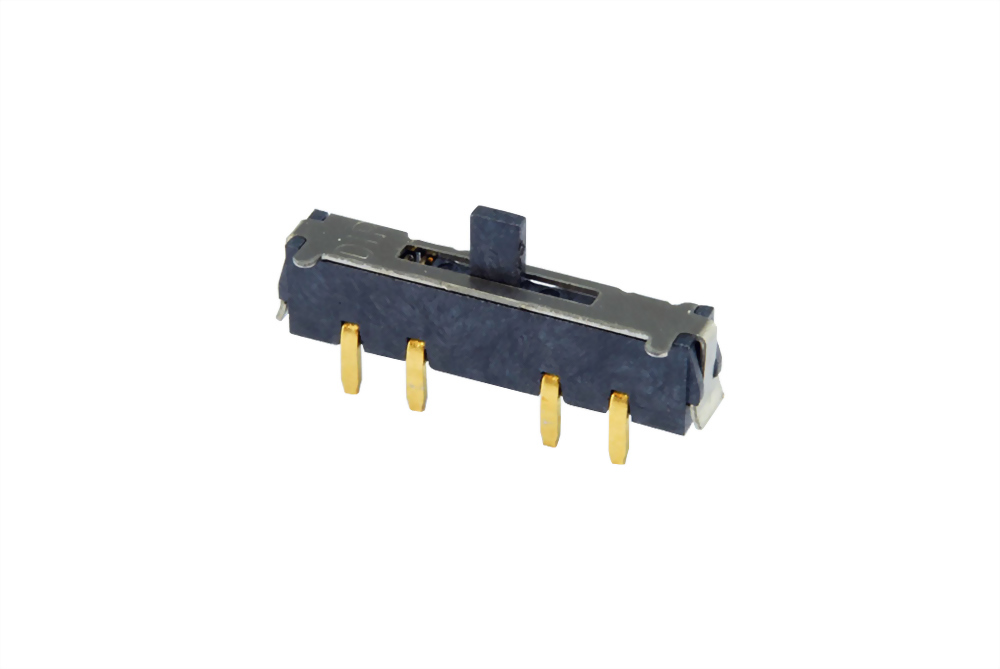

SLIDE SWITCH (MSL4-CMS)

MINI SLIDE SWITCH​
SPECIFICATION:
Rating: 100mA 50V DC
Circuit: 1P3T 4PIN
Travel: 2mm , Non Shorting
Operating Force: 350 ± 150g
Knob Length: 2.0mm
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 100MΩ
Operating Temperature: -20oC ~ +70oC
Electrical Life: 10,000 Cycles
Approvals : RoHS
Model : MSL4-CMS

SPECIFICATION:

Rating: 100mA 50V DC

Circuit: 1P3T 4PIN

Travel: 2mm , Non Shorting

Operating Force: 350 ± 150g

Knob Length: 2.0mm

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 100MΩ

Operating Temperature: -20oC ~ +70oC

Electrical Life: 10,000 Cycles


Approvals : RoHS
