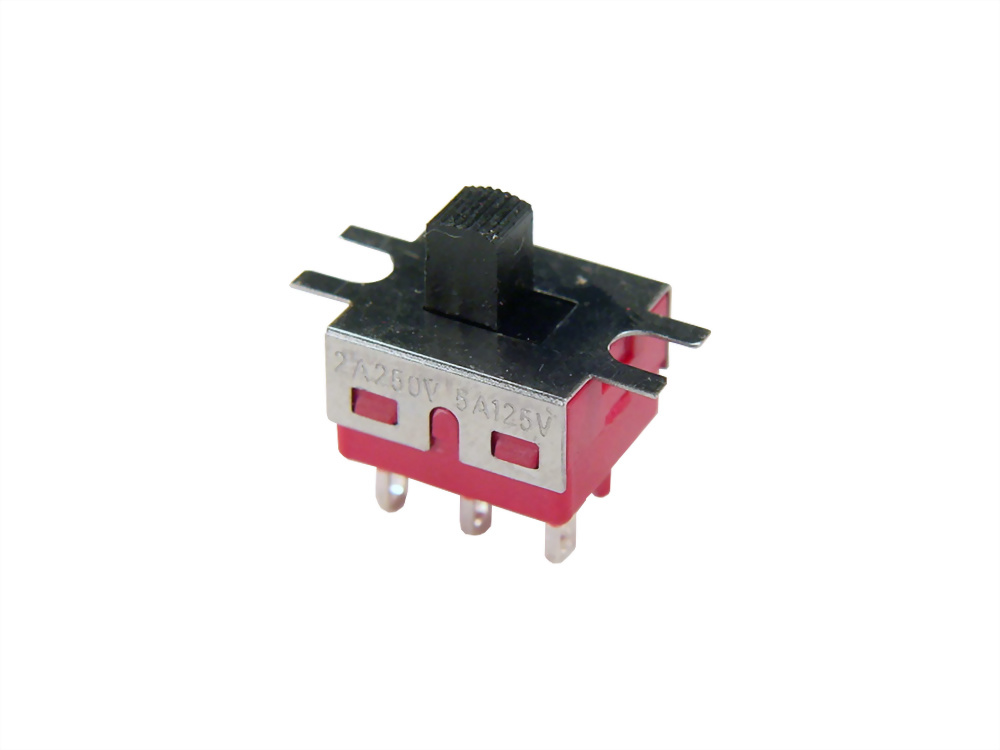

SLIDE SWITCH (MSDS-11)

MINI SLIDE SWITCH
SPECIFICATION:
Rating: 6A 120V DC
Screw Pitch: 17.53mm
Pitch: 4.7mm
Dielectric Strength: AC 1,000 V 1 Minute
Insulation Resistance: 1,000 MΩ Mim. 500V DC
Contact Resistance: 10MΩ
Operating Temperature: -30oC ~ +130oC
Electrical Life: 30,000 Cycles
FUNCTION:
ON-ON
Approvals : RoHS
