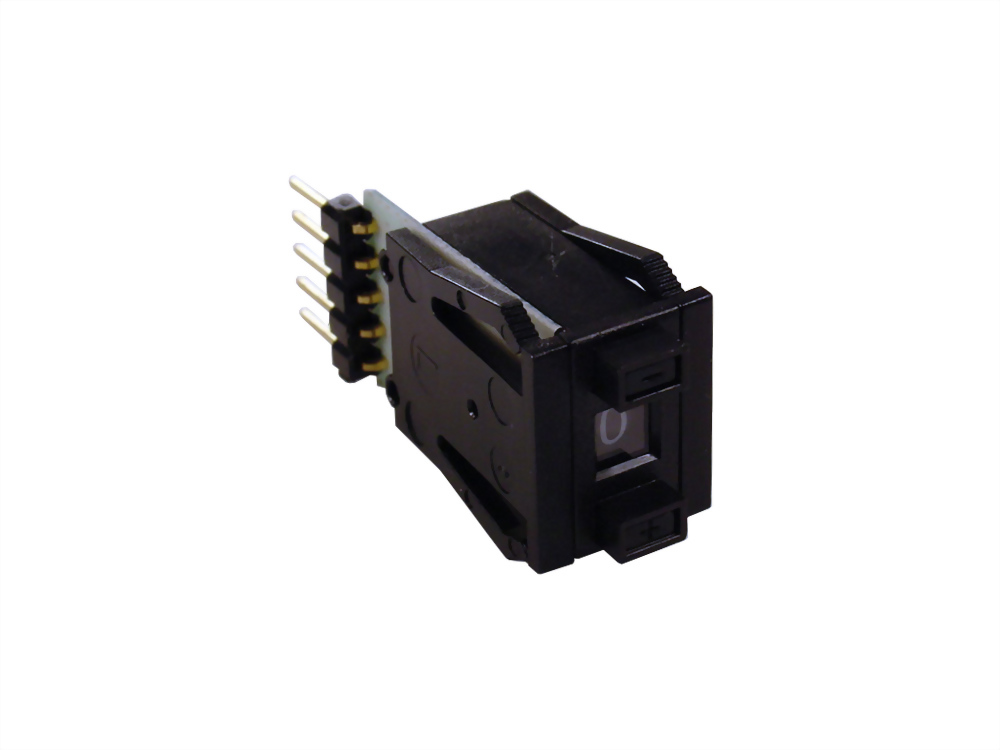

• ROTARY/DIGITAL SWITCH (SPS212□□71)

ROTARY/DIGITAL SWITCH (SPS212□□71)

Digital Switch
SPECIFICATION:
Rating: 100mA 50V AC / 28V DC
Panel: 14.3 x 7.62 mm
Protected Type
PCB Terminal Pin Head
Dielectric Strength: AC 500 V 1 Minute
Insulation Resistance: 100 MΩ Mim
Contact Resistance: 500MΩ Max.
Operating Temperature: -20oC ~ +65oC
Mechanical Life: 200,000 Steps Min
Electrical Life: 100,000 Steps Min
FUNCTION:
0~9 , 0~16
Approvals : RoHS
Model : SPS212□□71

Digital Switch

SPECIFICATION:

Rating: 100mA 50V AC / 28V DC

Panel: 14.3 x 7.62 mm

Protected Type

PCB Terminal Pin Head

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim

Contact Resistance: 500MΩ Max.

Operating Temperature: -20oC ~ +65oC

Mechanical Life: 200,000 Steps Min

Electrical Life: 100,000 Steps Min

FUNCTION:

0~9 , 0~16



Approvals : RoHS
